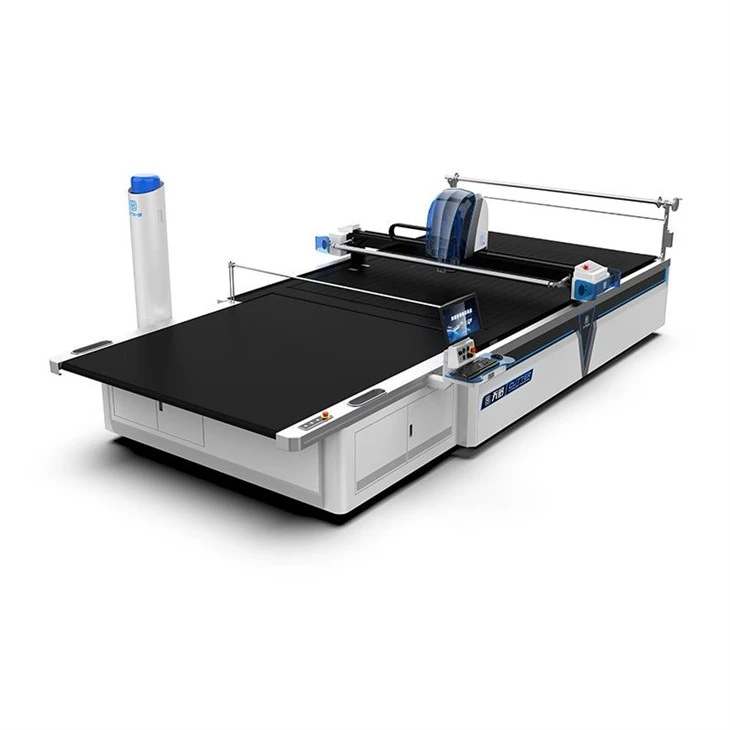

Knife Garment Cutting Machine

Send Inquiry

Product Introduction

The Knife Garment Cutting Machine is a heavy-duty CNC fabric cutting system designed for garment manufacturers, OEMs, and textile processing plants replacing manual cutting operations with automated precision.
Combining high-torque servo drives, stress-relieved structural steel, modular tool heads, and direct CAD/CAM nesting integration, this automated knife cutter produces clean, fused-free edges while achieving up to 5% material savings and replacing 3 to 5 manual cutting operators.

Key Advantages

Reduced Material Costs through Intelligent Nesting

Fabric constitutes up to 60% of total garment unit costs. Integrated automatic nesting software optimizes pattern layout with tight tolerances, reducing margin waste and edge scrap. Factories typically amortize equipment costs within 8 to 12 months through raw material savings alone.

Lower Dependence on Skilled Labor

Manual shear cutting relies heavily on operator technique and causes physical strain over long shifts. CNC digital cutting automates cutting paths, enabling a single operator to manage material loading, automated cutting, and panel unloading simultaneously.

Elimination of Downstream Sewing Bottlenecks

Inaccurate manual cutting introduces panel dimension variances, leading to seam misalignment during assembly. With dynamic cutting accuracy maintained at +/- 0.2 mm, finished cut panels strictly follow garment tech packs, minimizing sewing room rework rates.

Modular Cutting Systems for Diverse Fabric Types

Cutting System	Cutting Mechanism	Compatible Materials	Maximum Stack Height
High-Frequency Oscillating Knife	Rapid vertical reciprocating stroke	Cotton, Linen, Denim, Polyester, Knitted Fabrics	Up to 25 mm (vacuum compressed)
Driven Rotary Knife	High-torque continuous circular motion	Soft wovens, Silk, Lining fabrics, Synthetic mesh	Single-layer to medium continuous rolls
Heavy-Duty Pneumatic Knife	High-pressure pneumatic stroke drive	Multi-layer heavy denim, Canvas, Leather, Industrial composites	Up to 75 mm (vacuum compressed)

Industrial-Grade Construction and Core Components

01/

Heavy-Duty Steel Machine Frame: Structural steel gantry subjected to high-temperature annealing heat treatment to eliminate internal mechanical stress, preventing frame warping during years of intensive operation.

02/

Closed-Loop AC Servo System: Driven by high-torque AC servo motors across X, Y, and Z axes. Real-time encoder feedback continuously monitors drive position to prevent step loss during rapid tool direction changes.

03/

Precision Helical Gear & Linear Guides: Dual PMI / HIWIN precision linear guide rails combined with helical gear racks ensure smooth dynamic motion, quiet operation, and minimal mechanical backlash.

04/

Zone-Controlled Vacuum Hold-Down System: Multi-chamber vacuum bed concentrates suction pressure directly beneath the active cutting zone, keeping lightweight, elastic, or porous fabrics flat without excessive energy consumption (7.5 kW to 15 kW pumps available).

05/

Self-Cleaning Nylon Bristle Bed: High-density modular bristle blocks support full blade penetration without dulling tool tips, featuring automated pulse vacuum clearing for lint and thread removal.

Seamless CAD/CAM Workflow Integration

The cutting unit connects directly to mainstream garment CAD systems, eliminating manual file re-entry or complex conversion steps.

Supported Vector Formats: DXF, PLT, HPGL, AI, PDF

Compatible CAD Systems: Gerber, Lectra, Optitex, StyleCAD, Tukatech, Richpeace

Automated Tool Path Optimization: System software automatically detects internal notches, drill hole markers, grain lines, and outer boundaries, assigning precise knife speeds and corner decelerations automatically.

Technical Specifications

Parameter	Specification
Equipment Type	CNC Knife Garment Cutting Machine
Maximum Cutting Speed	Up to 1200 mm/s (adjustable based on material density)
Static Positioning Accuracy	+/- 0.1 mm
Dynamic Cutting Accuracy	+/- 0.2 mm to +/- 0.3 mm (material dependent)
Maximum Compressed Cutting Height	Up to 75 mm (vacuum-compressed stack height)
Standard Working Areas (W x L)	1600 mm x 2500 mm / 1800 mm x 3000 mm / Customized available
Blade Sharpening Unit	Automated Dual-Grit Diamond Wheel Sharpening System
Material Holding Method	Segmented Intelligent Vacuum Absorption
Operating Voltage	380V +/- 10%, 50/60Hz, 3-Phase (Customized 220V options available)
Compressed Air Requirement	0.6 - 0.8 MPa (6 - 8 bar)
Safety Configuration	Perimeter infrared safety sensors, Emergency stop switches, Safety light curtains

Factory Testing & Quality Control Protocols

Every machine undergoes strict pre-shipment inspection to guarantee immediate production readiness upon delivery:

Mechanical Alignment Verification

48-hour laser interferometer alignment check for gantry squareness, rail parallelism, and frame level.

Thermal & Electrical Stress Testing

72-hour continuous burn-in test to monitor electrical cabinet thermal performance, driver load stability, and motor resistance.

Material Cutting Validation

Actual trial cuts performed using client-supplied textile samples to confirm notch accuracy, cut edge squareness, and stack height consistency.

OEM, Wholesale & Distributor Partnerships

Custom Configuration: Customized cutting table dimensions, dual-gantry options, conveyorized feeding tables, and regional voltage adaptations.

Private Labeling (OEM): Custom machine color schemes, logo badging, localized software UI interfaces, and multi-language user manuals.

Parts Supply & Technical Backup: Guaranteed 5-year spare parts availability, fast-dispatch replacement blades, bristle blocks, and remote engineering troubleshooting.

Warranty Terms: 24-month comprehensive warranty covering main electrical and mechanical drive components (excluding consumable blades and bristle pads).

FAQ

Q: How does mechanical knife cutting compare to laser cutting for garments?

A: Mechanical knife cutting leaves clean edges without burning, yellowing, or fusing synthetic fabrics together. It also prevents toxic fume generation when cutting treated fabrics or PVC-backed textiles.

Q: How does the vacuum system hold porous or highly breathable materials?

A: For loose knits or mesh fabrics, an automated PE overlay film feeder seals the vacuum airflow across the cutting surface, compressing the fabric layer tightly against the bristle bed.

Q: What is the average lifespan of blades and bristle blocks?

A: Tungsten carbide blades typically provide 80 to 120 active cutting hours depending on material abrasive qualities. The bristle bed consists of modular 50 mm x 50 mm snap-in tiles, allowing cost-effective replacement of local wear areas rather than the whole bed.

Q: What training is required for new operators?

A: Operators with basic computer literacy can master file importing, zero-point calibration, and daily machine operation within 2 to 3 days using the intuitive touchscreen interface.
