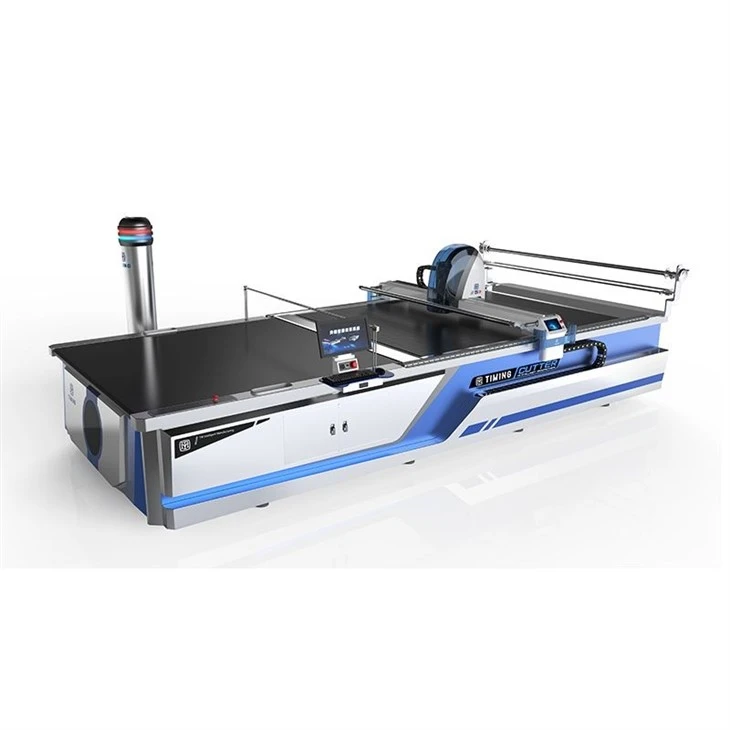

Computerized Automatic Cutting Machine
The TIMING TX series computerized automatic cutting machine is a type of machinery designed to automatically cut fabric materials without the need for manual labor. These machines use computer-controlled cutting systems to cut fabrics into precise shapes and sizes according to pre-programmed designs and patterns.
The automated cutting process is faster, more accurate, and more efficient than manual cutting methods. It reduces labor costs and minimizes fabric waste, resulting in lower production costs and higher productivity. The TIMING computerized cutting machine offers high precision and enables complex and intricate cutting designs.
What is the maximum cutting speed?
TIMING CNC cutting machine adopts full servo closed-loop control with stepless speed adjustment from 0–60 m/min, supporting high-speed production and low-speed precision cutting.
What is the cutting accuracy?
Cutting tolerance is controlled within ±0.5 mm for single and multi-layer materials.
How much efficiency improvement can be achieved?
Production efficiency increases by over 300%, replacing 4–6 manual cutting workers.
* Automatic Feeding: Timing TX series computerized automatic cutting machine equipped with an automatic feeding system, which allows for the continuous cutting of large quantities of fabric without the need for manual intervention.
* Precision Cutting: This auto aided fabric cutter use advanced technology to ensure precise and accurate cutting, which minimizes fabric waste and ensures consistent quality.
* Computer Numerical Control: CNC cutting machines use computer programming to control the cutting process, allowing for greater precision and automation.
* Safety Features: Timing computer auto cutters are equipped with safety features such as emergency stop buttons, safety guards, and sensors to ensure safe operation.
Tech Data
|
Max Cutting Height |
6 cm / 9cm (after vac-sorb) |
|
Cutting Window |
Length (no limitation) |
|
Width (no wider than the fabric width) |
|
|
Working Width (Y) |
1800mm/2000mm/Customized |
|
Normal Working Length (X) |
2500mm Standard / 3300 Lengthen optional |
|
Electricity |
Three phase 380V, 50~60Hz |
|
Power Consumption |
18KW max |
|
CAD&CAM Connect Way |
Ethernet communication / USB Flash memory |
|
Max Speed of Blade Working |
6000rpm/min |
|
Compressed Air |
0.55Mpa 160L/min |
|
Max Cutting Speed |
60000mm/min |
|
Acceleration |
0.6~0.8g (N/ Kg) |
|
Cutting Accuracy |
≤ ±1mm |
|
Noise Level |
< 72 dbA |
What cutting modes are available?
Single-layer precision cutting
Multi-layer batch cutting
Contour cutting
Fixed-length cutting
Micro-hole punching
Hollow pattern cutting
Does it support automatic operation?
Yes. Fully automated system with:
Auto speed adjustment
Auto knife sharpening
Auto vacuum control
Smart cutting optimization
Does it support vacuum cutting?
Yes. Adjustable vacuum system ensures stable multi-layer fixation without displacement.
Which CAD systems are supported?
Fully compatible with:
Gerber
Lectra
Richpeace
ET
Other mainstream CAD systems
Can it connect with spreading machines?
Yes. It supports full integration with TIMING automatic spreading machines for a complete cutting line.
What is the machine lifespan?
Designed for 10+ years of industrial use.
What is the warranty period?
1 year for whole machine
2 years for core components
Lifetime software updates & technical support
Can the machine be customized?
Yes. OEM/ODM supported:
Cutting width
Heavy-duty structure
Automation level
System integration
