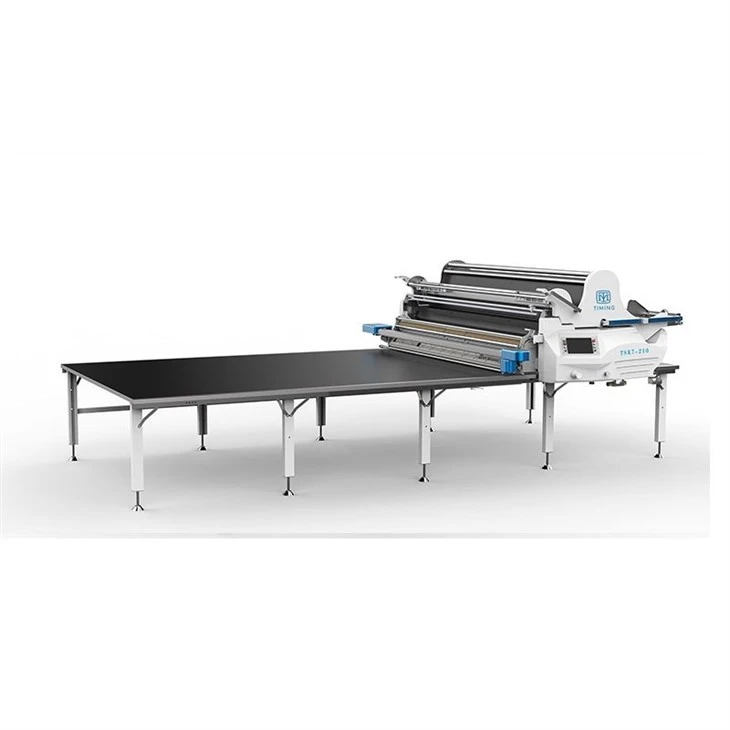

CNC Fabric Spreading Machine

The CNC Fabric Spreading Machine is an automated textile preparation system designed to improve fabric spreading efficiency, accuracy, and consistency before the cutting process.

Send Inquiry

Product Introduction

The CNC Fabric Spreading Machine is an automated textile preparation system designed to improve fabric spreading efficiency, accuracy, and consistency before the cutting process.

In modern garment and textile production, fabric spreading quality directly affects cutting accuracy, material utilization, and final product consistency. Manual spreading methods often depend heavily on operator experience, which can lead to uneven layers, fabric tension problems, and inconsistent alignment.

The CNC Fabric Spreading Machine uses computerized control, servo drive technology, and automatic fabric alignment systems to create uniform fabric layers with stable tension. It helps manufacturers reduce manual workload, improve production efficiency, and prepare fabrics more accurately for CNC cutting operations.

Technical Specifications

Parameter	Specification
Product Type	CNC Automatic Fabric Spreading Machine
Core Applications	Apparel, Home Textiles, Automotive Interiors, Furniture Upholstery
Standard Working Width	1800 mm / 2000 mm / 2200 mm / 2400 mm
Custom Width Options	Up to 3200 mm for wide-format technical textiles and home textile applications
Edge Alignment Precision	±1.0 mm (Photoelectric Sensor Feedback System)
Maximum Travel Speed	Up to 120 m/min (Programmable Inverter Control)
Standard Fabric Roll Capacity	80–100 kg
Heavy-Duty Roll Option	Up to 200 kg with Motorized Cradle Loader
Maximum Fabric Roll Diameter	Up to 500 mm
Maximum Stacking Clearance	Up to 200 mm (Depending on Fabric Weight and Material Characteristics)
Main Servo Drive System	Panasonic / Yaskawa Servo Motor System for Precise Motion Control
PLC Controller & HMI	Mitsubishi PLC with Multi-language Touchscreen Interface
Low-Voltage Electrical Components	Schneider Electric Components
Pneumatic System Components	SMC Pneumatic Systems
Operating Voltage	220V / 380V, 50/60Hz, 3-Phase (Configured According to Destination Country Power Standards)
Control System Advantage	Digital parameter management, programmable operation, and stable production control
Engineering Focus	Designed to improve cutting room efficiency through accurate fabric alignment, consistent layer spreading, reduced manual dependency, and optimized production workflow

Non-Tension Feeding Mechanism for Knitted and Stretch Fabrics

• The Industry Problem: Tension during spreading causes elastic and knitted fabrics to stretch. When cut, the plies relax, resulting in undersized pattern pieces and high garment rejection rates.

• Our Engineering Solution: An optical sensor loop system dynamically detects fabric slack between the feeding roll and the spreading head. The Panasonic servo drive regulates roller RPM in milliseconds, delivering completely tension-free lay-up for precise cutting dimensional stability.

Real-Time Photoelectric Edge Alignment (+/- 1.0 mm)
• The Industry Problem: Misaligned fabric edges force operators to expand marker borders, leading to 3% to 5% material waste across every cutting table.

• Our Engineering Solution: High-frequency infrared optical sensors continuously scan the fabric selvage. An independent lateral servo actuator shifts the spreading carriage in real time, keeping every ply aligned strictly within +/- 1.0 mm to maximize fabric utilization.

Heavy-Duty Frame Architecture for Industrial Operations
• The Industry Problem: Vibration in lightweight machine frames causes rail wear, sensor calibration drift, and premature drive system failure.

• Our Engineering Solution: Heavy box-section steel tubing with precision-ground linear guide rails reduces structural deflection at maximum travel speeds (120 m/min). Non-proprietary electronic components (Schneider and SMC) allow local off-the-shelf replacement anywhere in the world.

Operating Workflow in Action

01/

Roll Loading and Pre-Relaxation Place the fabric roll into the motorized cradle loader. For sensitive knits, the system allows pre-relaxation before spreading begins.

02/

Digital Recipe Selection Select preset speed, length, tension profile, and ply counts on the Mitsubishi touchscreen interface.

03/

Automated Spreading and Alignment The servo carriage travels along the table, delivering uniform layers while real-time sensors adjust edge positioning.

04/

Precision Cross-Cut and Cycle Repeat The integrated high-speed cutter performs a clean end-cut upon reaching the designated ply length, automatically returning for the next layer until the target stack height is achieved.

Global Distributor and OEM Support

Customization Options

• Custom working widths up to 3200 mm
• Tailored frame color schemes and private-label branding
• Multi-language HMI interfaces (English, Spanish, Russian, Vietnamese, Bengali, Turkish, Arabic)
• Customized power supply configurations for local electrical codes

Distributor Support Package

• Complete CAD factory floor layouts and foundation requirements
• Fast-ship spare parts kit containing high-wear components
• Remote engineering support and factory training modules

FAQ

Q: How does this CNC spreading machine handle heavy denim compared to light chiffon?

A: The PLC allows operators to store custom material profiles. For heavy denim, torque-boost mode delivers high feeding power. For delicate chiffon, light-touch optical loop control prevents material drag.

Q: What is the average ROI timeline for a medium-scale apparel factory?

A: Most factories reduce cutting table labor by 50% to 60% while saving 2% to 3% in fabric costs due to precise edge alignment. Average capital payback is achieved within 8 to 12 months.

Q: Is this machine compatible with our existing automatic CNC cutter?

A: Yes. The spreading unit integrates with standard air-floating spreading tables, conveyor transfer tables, and modern automatic CNC cutters.

Q: What warranty and spare parts support do you provide for international buyers?

A: We provide a 12-month global warranty covering core electronic components (PLC, servo drive, optical sensors). Replacement parts use standard metric specifications for easy global sourcing.
