Fabric Laying Machine

Name: China Fabric Laying Machine Manufacturers Suppliers - Fabric Laying Machine Price - Timing Weiye Technology
Brand: TIMING
SKU: 254129648

Timing fully automatic spreading machine with automatic fabric expanding system, PLC touch panel, user friendly and simple operation increases production efficiency and also ensures the best quality.

Send Inquiry

Product Introduction

Timing fully automatic Fabric Laying Machine with automatic fabric expanding system, PLC touch panel, user friendly and simple operation increases production efficiency and also ensures the best quality.

What is the spreading speed?

The machine adopts a servo-driven stepless speed control system with a spreading speed range of:

0–20 m/min

High-Speed Mode

12–20 m/min

Ideal for woven fabrics and mass production

Low-Speed Mode

0.5–10 m/min

Suitable for elastic, lightweight, and coated fabrics

The servo soft-start technology ensures smooth acceleration and deceleration without fabric distortion.

How accurate is the spreading process?

Timing automatic spreading machines are equipped with:

Closed-loop tension control system

Automatic edge alignment system

Fabric relaxation mechanism

Accuracy Performance

Fabric stretch deviation: ≤ ±0.3%

Edge alignment accuracy: ±1.5 mm

Table flatness tolerance: ≤ 0.5 mm

This helps reduce fabric waste by approximately 3–5% while improving cutting consistency.

Does the machine support tension-free spreading?

Yes.

The machine features Timing's proprietary fabric relaxation system that automatically releases internal fabric tension before spreading.

Benefits include:

Reduced fabric shrinkage

Improved dimensional stability

Better cutting accuracy

Enhanced consistency for knitted and stretch fabrics

What spreading modes are available?

Timing automatic spreading machines support five spreading methods:

Face-to-Face Spreading

For fabrics requiring face-to-face cutting.

One-Way Spreading

Suitable for directional fabrics.

Reciprocating Spreading

Automatic spreading in both directions without manual fabric turning.

Segmented Fixed-Length Spreading

Ideal for mixed production and small-batch orders.

Tension-Free Relaxed Spreading

Designed for elastic and knitted fabrics.

What is the maximum fabric roll capacity?

Standard Configuration

Maximum roll weight: 100 kg

Maximum roll diameter: 450 mm

Optional Heavy-Duty Configuration

Maximum roll weight: 200 kg

Suitable for:

Home textiles

Automotive interior fabrics

Industrial textiles

Heavy-duty woven materials

What working widths are available?

Standard spreading widths include:

1600 mm

1900 mm

2100 mm

Customized widths are available according to customer requirements.

What is the maximum lay height?

Standard Configuration

200 mm

Optional Configuration

260 mm

Suitable for high-layer cutting operations and bulk production.

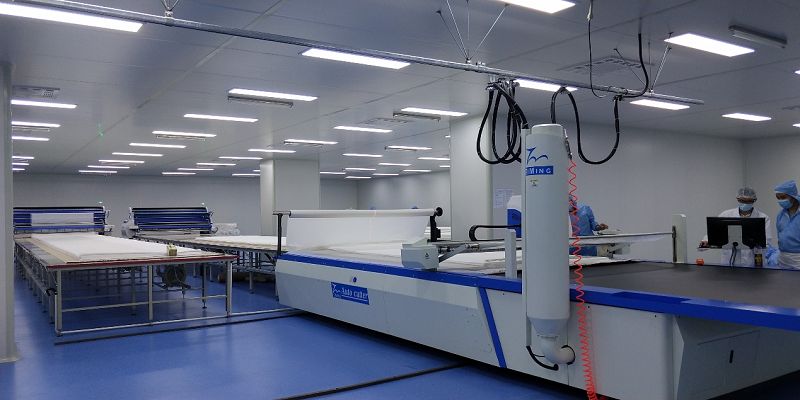

product-800-400

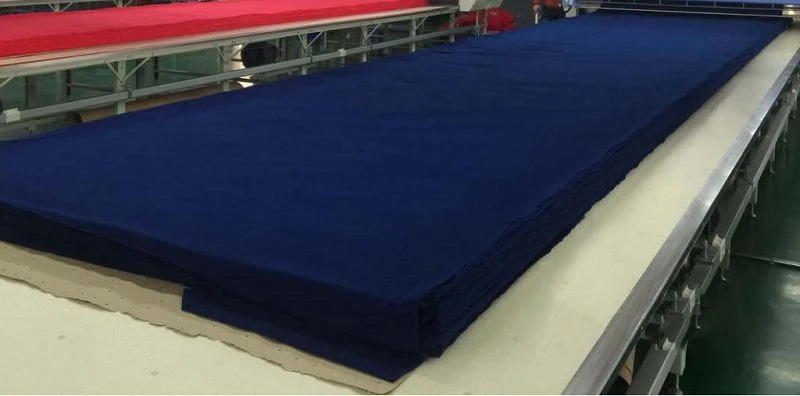

product-800-396

◆ Less Labor Cost: One staff (Wages and benefits is RMB4000/month); at peak seasons, staffs running on two shifts while one operator can manage the spreader easily; and if set with movable table, one spreader can set for two table lines

◆ Faster Working Efficiency: According to the fabric, the spreader can reach an average speed at 90m/min. E.g., based on 8 hours, in addition to the time loss of the fabric loading, let's calculated the speed at 20m/min, the total length of the fabric we spreading would be 8000 meters one day.

◆ Increase fabric utilization: One hard, NO tension spreading operation assures the same tension of each layer, of which lengthen the marker length, on the other hand, the position accuracy is within 5mm, compared with labors spreading way, it saved 2cm at least for each layer. E.g.: The standard spreading
◆ length is 8000 m daily of one spreader, counted on 320 working days annually, the total fabric in spreading would be 2,560,000 meters, say the fabric cost RMB8/meter, and the set length of one layer is 10 meters

Tech Data

Models	TSK7-160	TSK7-190	TSK7-210
Electricity	1P/AC220V - 50Hz - 15A/1.5KW
Working Width	63''/1600mm	75''/1900mm	83''/2100mm
Table Width	72''/1830mm	84''/2130mm	92''/2330mm
Roll Weight	Standard:80kgs max; Customized: 100kgs max
Roll Diameter	450mm max
Carriage Speed	90m/min max
Ply Height	One-Way: Standard 220mm; Customized:300mm Face to Face:150mm

What certifications does the machine have?

Timing Automatic Spreading Machines are certified with:

CE Certification

ISO 9001 Quality Management System Certification

Timing is also recognized as a National High-Tech Enterprise and participates in the development of industry standards for spreading and cutting equipment.
